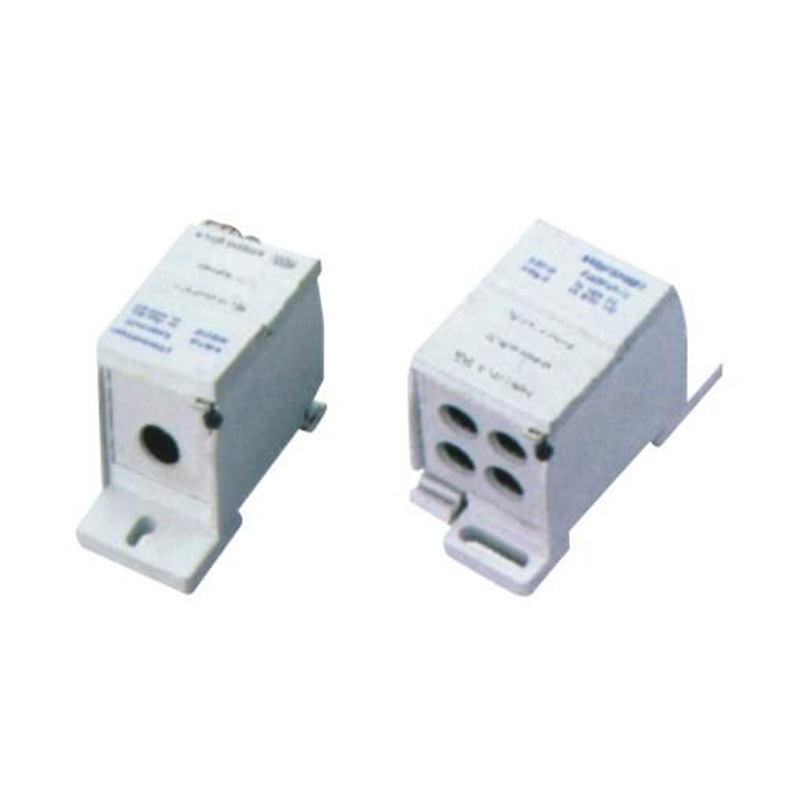

عربىOverheating and loose contacts in terminal blocks can compromise system safety and reliability. Proper installation, maintenance, and careful selection of terminal blocks are essential to prevent these issues. Zhejiang Haidu Electric Co., Ltd. offers a range of robust dual row terminal blocks and DIN rail terminal blocks designed to provide secure connections while minimizing electrical risks.
1. Understanding the Causes of Overheating
Overheating in terminal blocks typically results from a combination of electrical, mechanical, and environmental factors. Common causes include:
Excessive current: Connecting wires that carry more current than the terminal block’s rated capacity can generate heat, causing insulation degradation or deformation.
Loose connections: Over time, vibration, thermal expansion, or improper initial tightening can loosen screws or clamps, creating high-resistance points that generate heat.
Incompatible wire size: Using a smaller wire than recommended for the terminal block increases resistance and temperature.
Environmental factors: High ambient temperatures or inadequate ventilation in control panels exacerbate overheating risk.
2. Ensuring Secure and Stable Connections
Loose contacts are a major cause of electrical faults, and maintaining proper clamping pressure is key. Nicely practices include:
Correct torque application: Follow manufacturer specifications for screw-tightening or spring clamp pressure to ensure consistent contact without damaging the conductor.
Proper wire insertion: Fully strip the insulation and insert wires completely into the terminal. Partial insertion can result in intermittent faults and localized heating.
Routine verification: For high-vibration environments, periodically check dual row terminal blocks for loosened screws or shifted terminals.
3. Selecting the Correct Terminal Blocks
Choosing the correct dual row or DIN rail terminal blocks for your application is critical:
Current and voltage rating: Ensure the block can handle the large expected electrical loads.
Wire size compatibility: Select blocks that fit the wire gauges used in your panel.
Environmental suitability: Consider operating temperatures, humidity, and potential exposure to dust or vibration.
Material quality: Blocks made from flame-retardant, corrosion-resistant materials can extend lifespan and enhance safety.
Zhejiang Haidu Electric Co., Ltd. designs its terminal blocks with these considerations, ensuring good performance across various industrial applications.
4. Regular Inspection and Maintenance
Even well-installed terminal blocks require periodic inspection:
Visual checks: Look for discoloration, charring, or corrosion, which are indicators of overheating or poor contact.
Mechanical inspection: Confirm that screws, clamps, and mounting rails are secure.
Electrical testing: Use a thermal camera or multimeter to identify hotspots or abnormal resistance.
Replacement schedule: Replace worn or damaged blocks immediately to avoid cascading faults.
Dual row terminal blocks, especially in dense panels, may require more frequent inspections due to the compact arrangement.
5. Installation Safety nicely Practices
Proper installation prevents future issues and enhances panel longevity:
Power off before installation: Always disconnect mains or DC supply to prevent accidents.
Use recommended tools: Screwdrivers, torque wrenches, or insulation strippers designed for terminal blocks reduce risk of damage.
Neat and organized wiring: Proper routing avoids accidental contact, reduces heat accumulation, and facilitates troubleshooting.
Labeling: Clear identification of circuits and terminals simplifies maintenance and fault detection.
6. Benefits of Using High-Quality Terminal Blocks
High-quality dual row and DIN rail terminal blocks offer:
Durable connections: Resistant to vibration, thermal cycling, and repeated reconnections.
Consistent clamping: Reduces risk of overheating and ensures stable electrical performance.
Modular design: Simplifies replacements and expansions without disrupting other circuits.
Zhejiang Haidu Electric Co., Ltd. provides dual row and DIN rail terminal blocks that meet these criteria, delivering reliable and safe solutions for industrial and commercial electrical systems.
